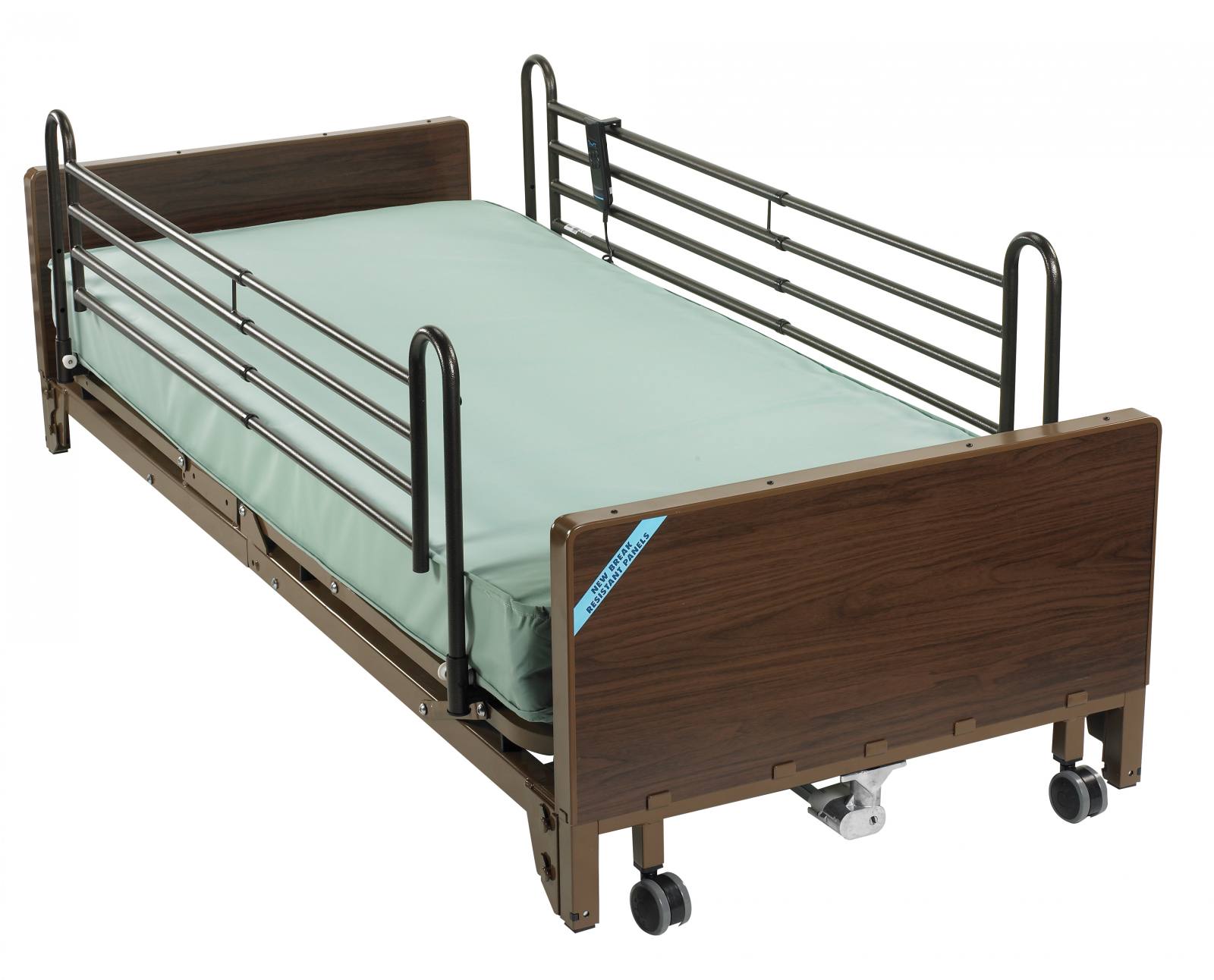

Drive Full Electric Low Height Bed

$1,745.00

Delta Ultra Light Full Electric Low Bed, Frame Only

  • 9.5″ to 23.5″ deck height
  • Caster easily moves from standard to low bed position
  • Channel frame construction provides superior strength and reduced weight
  • Easy to set up
  • Headboard is taller than footboard to better fit home decor
  • Height adjustable motor comes pre-installed on the foot section
  • In the event of a power failure, a 9 volt battery, located in the motor, can lower the head and foot sections nine times
  • Labels and color-coded springs assure accurate installation of side rails for patient safety
  • New and improved hand pendant has large, easy to use controls
  • Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
  • The Delta 1000 is truly universal because the headboards and footboards are completely interchangeable with Drive’s and most other manufacturers bed ends, old and new
  • The motor assembly can be installed and removed with patient in bed
  • The motor is UL approved
  • The transition box allows you to change the rotation of the high-low shaft
  • The transition box mounted on the foot section is key to interchangeability
  • The wood grain panels are break and scratch resistant
  • Top mounted Hi/Lo crank accessibility
  • Unique motor is completely self-contained to reduce weight and noise
  • Zinc coated spring deck
SKU: 560d750b4eb3 Categories: ,
Brands:

Description

• Low Deck height with flexibility to configure “roll at any height” or “roll at low height only” castor location
• -Roll at any Height: 14.81″ (376mm) to 22.83″ (580 mm) deck height
• -Roll at Low Height: 11.81 (300 mm) to 19.83″ (504mm) deck height
• Quiet, convenient, full electric operation provides smooth position change w/easy-to-use Hand Pendant control of
Head/Foot Section positioning and overall height of the bed frame for maximum comfort and versatility for the patient or
caregiver
• Height-adjustment and Head/Foot deck motors come pre-installed on the foot section no assembly required
• In the event of power failure, top mounted Hi/Lo crank accessibility and manual crank motor override of sleep surface
adjustments
• Easy-to-transport and set up, Bed ships in two cartons
• Channel frame construction provides superior strength and reduced weight
• Reinforced frame resists twisting and bending
• Long lasting Zinc-coated spring deck for Patient comfort
• Heavy-duty bed ends with durable HD Polyethylene Molded Bed End covers are attractive, easy-to-maintain
• Headboard is taller than footboard to blend with home décor
• Labels and color-coded springs help ensure accurate installation of side rails for patient safety
• High performance workhorse muscle of the 3-motor power plant is an industry standard
• Half rails and full rails available in packages (PKG) or sold separately
• Motor is UL Approved, Bed is manufactured in ISO9001 & ISO13485 facility
• Satisfies applicable FDA entrapment guidelines
• Extension kit available (model #15005EXTKIT-L) extends length from 80″ to 84″
• Patient Weight Capacity 350 lbs. (158kg). Total Weight Capacity 450 lbs. (204kg). Includes occupant, mattress, rails,
trapeze, accessories, personal affects, etc.
PRODUCTS Description
15005LP Full Elec LowBed 1/cv
15005LP-FR Full Elec LowBed,Full Rail Pkg
15005LP-FRPKG Full Elec LowBed,FRail IMatt Pkg
15005LP-FRPKG-FM Full Elec LowBed,FRail FMatt Pkg
15005LP-FRPKG-TS Full Elec LowBed,FRail TSMatt Pkg
15005LP-HR Full Elec LowBed Half Rail Pkg
15005LP-HRPKG Full Elec LowBed HRail IMatt Pkg
15005LP-HRPKG-TS Full Elec LowBed HRail TSMatt Pkg
SPECIFICATIONS Description
Carton Shipping Weight 184 lbs
Roll at Low Height 11.81 (300mm) to 19.83 (504mm) deck height

Roll at any Height 14.81″ (376mm) to 22.83 (580mm) deck height
Unit Dimensions 36″ (.914m) (W) x 88″ (2.24m) (L)
Warranty Original Purchaser. Limited Lifetime on welds, 5 year on frame, motor, pendant, 1 year on all other parts and
components. During the warranty period, defective items will be repaired or replaced at Drive’s option at no
charge
Weight 169 lbs

Additional information

Manufacturer Identifier

15235
